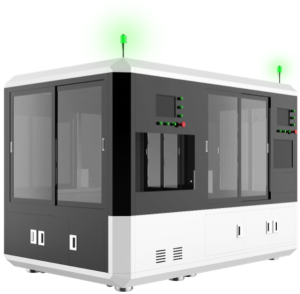

FPC automatic line

FEATURES:

◆ According to customer needs, sheet material feeding or roll material feeding can be selected

◆ Suitable for flat FPC

◆ Suitable for attaching irregular 3D bending FPC

◆ Adopting visual positioning

◆ Fully automated design, capable of docking with production lines to achieve unmanned operation

◆ Operating manpower: 0.5 people/shift

PARAMETERS:

◆ Equipment size: L * W * H=(1450+250) * 950 * 1750mm

◆ Production capacity (UPH): Flat FPC: 1200pcs/h

Irregular bending 3D FPC: single station 800pcs/h, dual station 1200pcs/h

◆ Power supply: single-phase AC220V, 50HZ

◆ Power: about 3KW;

◆ Gas source: 0.5-0.7MPa

◆ Accuracy: ± 0.1mm
