FUNCTION:

The equipment directly docking injection molding machine manipulator, coating plate in the form of tray transplanting operation, shearing pendulum plate after the completion of the automatic storage, is an automatic cutting, automatic pendulum, automatic loading and unloading intelligent equipment.

PARAMETERS:

◆ Flexible corresponding 32 points and the following number of flow channels free shear

◆ Shear accuracy: shear accuracy within ± 0.02mm

◆ High precision servo module mechanism position tolerance ±0.01mm

◆ Shear yield: 99%

◆ Swing yield: 99% the whole machine comes with real-time monitoring system

◆ Double cutter base cutting: 8 points 12s, 12 points 18s, 16 points 24s

◆ Four knife base cutting: 32 points /24s, 24 points /18s, 16 points /12s

APPLICATION:

Used for cutting mobile phones, car, security lenses, light guide columns, contact lenses, etc., with the production process of injection molding machine manipulator, to meet the cutting requirements of the process can be applied.

FUNCTION:

High precision automatic cutting, setting, surface and cutting CCD detection (optional function) for multi-point feeding, large feeding point, or non-mobile barrel containing glass fiber materials.

PARAMETERS:

◆ Instead of ultrasonic vibration in the birth, bad cutting, bruising, drawing, debugging is difficult, high drop frequency problems.

◆ It can achieve high precision and high stability shear of the product.

◆ With data formula function to achieve one-click process data call, to achieve fast line switching.

◆ For cutting products of different materials, the tool is made of different materials and the surface coating is used to ensure the cutting quality of the product and the service life of the tool.

APPLICATION:

For mirror tube molding, non-mobile phone mirror tube, other black material injection molding parts.

FUNCTION:

Lens integrated assembly machine for vehicle, security, vehicle, medical small lens, industrial lens group automatic production.

FEATURES:

◆ Assembly X axis using marble platform + double acting linear motor module, stable, high speed, high precision.

◆ Equipped with a total of 5 sets of vision systems, it can accurately determine the center coordinates of assembled parts (LENS, SPACER, SOMA, 0 Ring, etc.) and the center coordinates of the barrel (BARRI), and automatically compensate the center deviation through the algorithm.

◆ The orientation of the nozzle of LENS is judged by the visual system, so that LENS can be assembled according to the set direction.

◆ Through the vision system can also identify LENS NG logo, positive and negative content, reduce adverse generation.

◆ The assembly pressure in the assembly process can be precisely controlled by the assembly pressure control system.

◆ The device can pre-store the setting conditions of machine types, and can realize one-key switching when switching machine types, saving time.

◆ The MES system interface is reserved for intelligent device management.

FUNCTION:

Automatic plate setting machine is mainly used in mirror barrel, lens, diaphragm and other automatic plate setting.

PARAMETERS:

◆ High speed, stable, UPH up to 6000.

◆ With visual accurate identification of material direction, can accurately control the swing Angle.

◆ Automatic feeding via flexible vibrating disk.

◆ The bin can be customized according to demand, and the tray arrangement program is compatible with various types of trays, which can be quickly switched.

◆ Touch screen operation, taking and discharging material height parameters, Angle parameters and other parameters visualization.

APPLICATION:

The need for high-speed swing plate feeding, high-speed mounting process products can be promoted.

FUNCTION:

Suitable for spherical and aspherical lens appearance defects, appearance defects, bubbles and other bad detection.

PARAMETERS:

◆ Detection items: dirt, black spots, watermarks, spots, scratches, flow marks, bubbles, jet lines, uncoated, single-side coating, film undercoating, coating film layer color, etc.

◆ Strong compatibility can be adapted to the vast majority of mobile phone lenses on the market, the optical solution with 18 sets of servo motion modules, can be changed according to the curvature of different lenses, strong adaptability.

◆ High efficiency: Dual wire UPH 8000+, (depending on the number and size of lenses in a single disc).Rapid modeling: adaptive recognition modeling, process operation, 30 minutes modeling.Ultra-high sub-pixel accuracy: up to 1/50 accuracy.

APPLICATION:

Mobile phone lens, car lens and other optical lens defect detection.

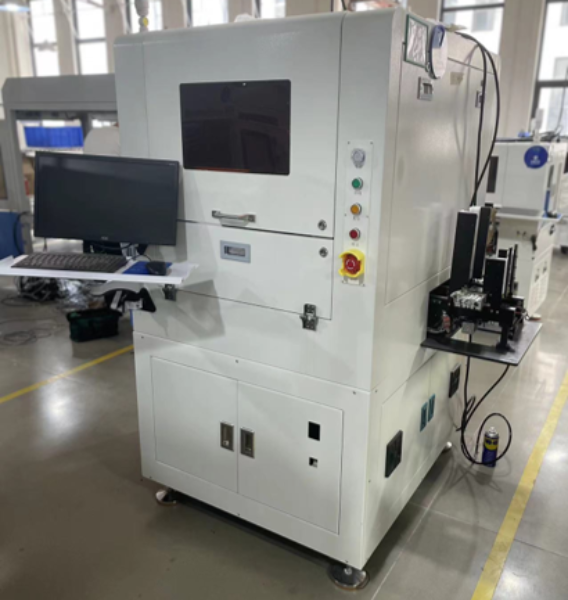

FUNCTION:

It is suitable for the eccentric detection of spherical and aspherical lenses, which can realize automatic detection, automatic swing plate, automatic loading and unloading intelligent equipment.

PARAMETERS:

◆ Industry general: suitable for 2-50mm lens eccentricity detection.

◆ Measurement accuracy: With pixel size 2.9um camera, the maximum accuracy is 3.3″.

◆ Measuring range: convex and concave mirror (including aspherical surface) other than flat mirror.

◆ Optional configuration: can be configured according to customer requirements, additional camera, eccentricity algorithm software, small lens measuring fixture.

◆ Control mode: CHART focus, lighting brightness control are controlled by computer program.

APPLICATION:

Mobile phone lens, car lens and other optical lens defect detection.

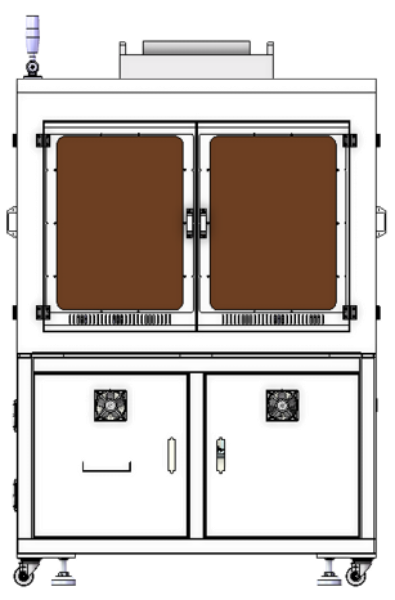

FUNCTION:

Lens automatic dust removal machine is mainly used to clean the outside of the lens and the reference plane and the sky surface by blowing air, loading and unloading the material box, and the upper and lower suction plate.

PARAMETERS:

◆ Compatible product height: 3-10mm.

◆ Compatible product size: 5-25mm.

◆ UPH: 1800pcs/h.

◆ Dust removal yield: > 20um dust <2%, > 40um dust <0.5%.

◆ Application environment: clean room Class 1,000 or above.

APPLICATION:

Mobile phone lens, camera lens, ARVR lens, etc., other parts with dust removal requirements, need to be blown clean product process.

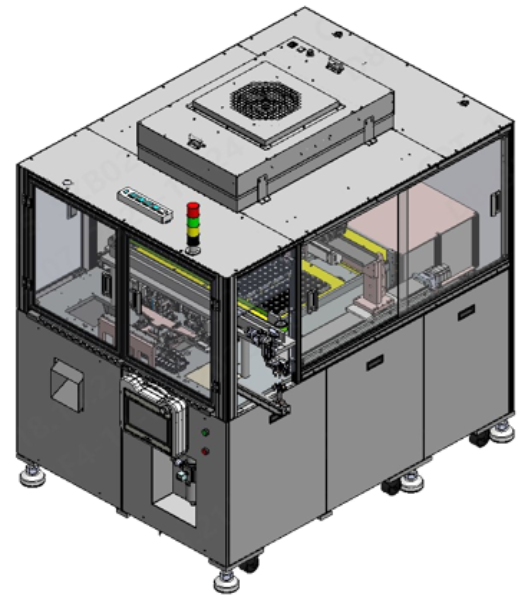

FUNCTION:

Before and after coating, the lower plate of the coating base and the plating board are replaced, and the new fastener is replaced simultaneously.

PARAMETERS:

◆ It has the function of disassembling the buckle and changing the plate.

◆ Replaceable coating disc top cover.

◆ Abnormal rate of buckle removal :<0.01%.

◆ Abnormal ratio of cover removal :<0.01%.

◆ Loading warehouse can be handled in whole warehouse to facilitate AGV docking later.

◆ UPH>800(single board change, 800 boards finished).

APPLICATION:

Lens class or other products, coating tray needs to remove/install the buckle, replace the top cover process.

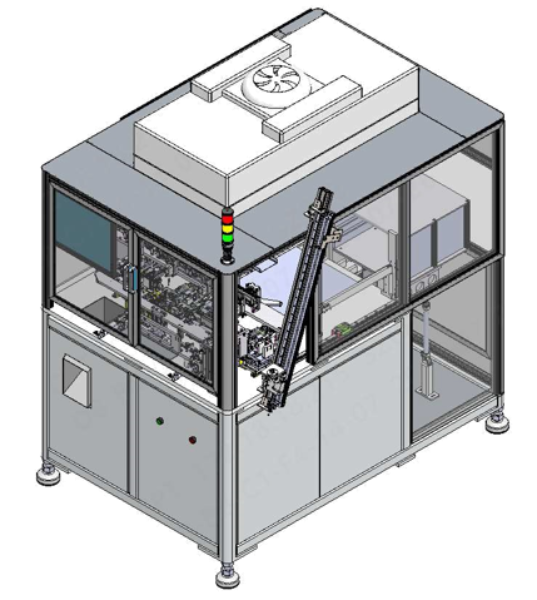

FUNCTION:

The prism material and support body automatic alignment equipment can meet the requirements of high-precision glass, automatic accurate dispensing automatic alignment, pressure preservation, UV curing, and information tracing function.

PARAMETERS:

◆ Product size: maximum product 18*18, length 60-80mm.

◆ Pressing mode: cylinder pressing, pressure adjustable control.

◆ Pressing time: Holding time 4s, time can be adjusted.

◆ UV mode: lamp type UV curing.

◆ UV time: UV curing time 5s, Time adjustable.

◆ Efficiency: UPH-900pcs.

APPLICATION:

Triangular, quadrilateral prisms, flat mirrors, glass lenses, etc.
